IP-camera 2 MP, H.265, for ultra-low illumination, WDR Pro, Day/Night

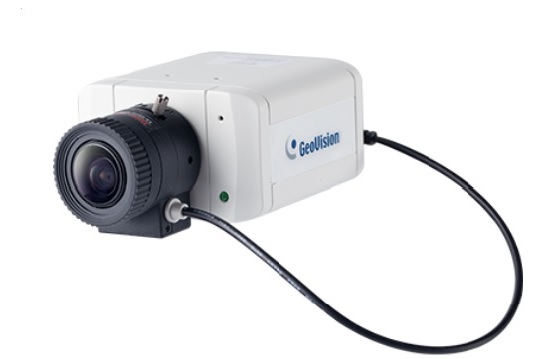

GV-BX2700 is a series of IP cameras for indoor installation, which includes a model with a variable focal length of the lens and a model with a fixed focal length of the lens. The GV-BX2700 supports the H.265 codec, which improves the compression ratio and reduces the required network bandwidth while maintaining high image quality. The cameras are equipped with a CMOS-matrix for ultra-low illumination, which allows you to get an image in vivid colors at almost complete darkness. The cameras also have a mini-USB port, through which you can provide a wireless connection using the GV-WiFi network adapter (optional) or connect an external storage - a USB hard drive.
Features:
- Matrix 1/2.8" CMOS, progressive layout, for ultra-low illumination
- Min. illumination 0,004 lux
- Double stream in H.265, H.264 and MJPEG
- Up to 30 fps at 1920 x 1080
- Lenses with P-iris for automatic iris control
- Built-in/external microphon
- 2-way audio
- 1 sensor input and 1 alarm output
- TV-out
- Buil-in microSD slot (SD/SDHC/SDXC/UHS-I) for local data storage
- Record is assigned by GV-Edge Recording Manager dispetcher (version for Windows, Mac)
- Mini-USB slot for network adapter WiFi or USB hard drive
- WDR Pro
- 3D-noise reduction
- Intelligent streaming
- Defogging
- Security mask
- IP-address filtration
- 12 V DC/ PoE (IEEE 802.3af)
- Removable IR-cut filter for Day and Night
- Zoom lenses for megapixel resolution
- Supports iPhone, iPad, Android and 3GPP
- 31 languages in web-interface
- Complies with requirments for ONVIF (profile S)
Models
|
Model |
Iris |
Focal distance (mm) |
Max. aperture |
Matrix format |
|
GV-BX2700-3V |
Controlled, P-Iris |
3 ~ 10,5 mm |
F/1.4 |
1/2.7” |
|
GV-BX2700-8F |
Fixed |
2,8 mm |
F/1.8 |
1/2.5’’ |
Specification
|
Camera |
GV-BX2700-8F |
GV-BX2700-3V |
|||
|
Matrix |
Matrix 1/2,8" CMOS, progressive layout, for ultra-low illumination |
||||
|
Resolution |
1920 (D) x 1080 (H) |
||||
|
Min. illumination |
Color |
0,005 lux |
|||
|
W/B |
0,004 lux |
||||
|
IR |
0 lux |
||||
|
Exposure |
Auto, manual (1/5 – 1/16000 s) |
||||
|
White balance |
Auto, manual (2800 – 8500K) |
||||
|
Gain control |
Auto (AGC) |
||||
|
Signal/noise ratio |
56 dB |
||||
|
WDR Pro |
Yes |
||||
|
Dinamic range |
130 dB |
||||
|
Lenses |
|||||
|
Megapixel |
Yes |
||||
|
Day-Night |
Yes (with removable IR-cut filter) |
||||
|
Lenses type |
Fixed |
Zoom lenses |
|||
|
Focal distance |
2,8 mm |
3 ~ 10,5 mm |
|||
|
Max. aperture |
F/1.8 |
F/1.4 |
|||
|
Mounting |
Mounting CS |
||||
|
Matrix format |
1/2.5” |
1/2.7” |
|||
|
Horizontal viewing angle |
110° |
100° ~ 35° |
|||
|
Operation |
Focus |
Manual (with interlocking) |
Manual (with interlocking) |
||
|
Zoom |
Fixed |
Manual (with interlocking) |
|||
|
Iris |
Fixed |
Controlled P-Iris |
|||
|
Operation |
|||||
|
Video compression |
H.265, H.264, MJPEG |
||||
|
Video streaming |
Stream 1 in H.265 or H.264 Stream 2 in H.265, H.264 or MJPEG |
||||
|
Frame rate |
50 Hz: 25 fps at 1920 x 1080 60 Hz: 30 fps at 1920 x 1080 |
||||
|
Image adjustment |
Brightness, contrast, saturation, sharpness, gamma, white balance, anti-flicker, image orientation, shutter speed, backlight compensation, d / n sensitivity, wide dynamic range (WDR), fog compensation, image correction in low light, noise reduction, detection optimal exposure |
||||
|
Audio comression |
G.711 |
||||
|
Audio |
2-way audio |
||||
|
Sensor input |
1 in |
||||
|
Alarm output |
1 digital output (200 мА, 5 V DC) |
||||
|
Video Resolution |
||
|
Main Stream |
4:3 |
1280 x 960, 640 x 480 |
|
16:9 |
1920 x 1080 (Default), 1280 x 720, 640 x 360 |
|
|
5:4 |
1280 x 1024, 640 x 512 |
|
|
Sub Stream |
4:3 |
1024 x 768, 640 x 480, 320 x 240 |
|
16:9 |
1280 x 720, 640 x 360 (Default), 448 x 256 |
|
|
5:4 |
1280 x 1024, 640 x 512, 320 x 256 |
|
|
Third Stream (Closed by Default) |
4 : 3 |
640 x 480, 320 x 240 |
|
16 : 9 |
640 x 360, 448 x 256 |
|
|
5 : 4 |
640 x 512, 320 x 256 |
|
|
Network |
||
|
Interface |
10/100 Ethernet |
|
|
Protocol |
DHCP, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IPv4, IPv6, Multicast, NTP, ONVIF (Profile S, T), QoS (DSCP), RTCP, RTSP, SNMP, SMTP, SSL, TCP/IP, UDP, UPnP, 3GPP/ISMA |
|
|
Wireless LAN |
IEEE 802.11 b/g/n |
|
|
Antenna Type |
External |
|
|
Security |
WEP, WPA-PSK(TKIP), WPA-PSK(AES), WPA2-PSK(TKIP), WPA2-PSK(AES) |
|
|
Security Feature |
|
|
|
Mechanical |
||
|
Temperature Detector |
Yes |
|
|
Connectors |
Power |
2-pin terminal block (DC 12V, 1.25A), PoE |
|
Ethernet |
Ethernet (10/100 Base-T), RJ-45 cable |
|
|
Audio |
1 In (built-in or external microphone) 1 Out (stereo phone jack, 3.5 mm / 0.14'') |
|
|
Digital I/O |
3-pin terminal block, pitch 2.5 mm (0.1'') |
|
|
Auto Iris |
Yes (with varifocal lens) |
|
|
Local Storage |
Micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) *UHS-II card type is not supported. |
|
|
TV-Out |
BNC connector |
|
|
Mini USB |
GV-WiFi Adapter or USB hard drive |
|
|
LED Indicator |
2 LEDs: Power, Status |
|
|
General |
||
|
Environment Temperature |
Start-up |
0 °C ~ 50 °C (32 °F ~ 122 °F) |
|
Operation |
||
|
Humidity |
10% to 90% (no condensation) |
|
|
Power Source |
12V DC / PoE (IEEE 802.3af) |
|
|
Max. Power Consumption |
4.9 W |
|
|
Dimensions (without lens) |
75.5 x75 x 54 mm (2.97'' x 2.95'' x 2.13'') |
|
|
Weight |
320 g (0.7 lb) 350 g (0.77 lb) |
|
|
Regulatory |
CE, FCC, RCM, LVD, RoHS compliant |
|
|
Power over Ethernet |
||
|
PoE Standard |
PoE (IEEE 802.3af Power over Ethernet / PD) |
|
|
PoE Power Supply Type |
End-Span and Mid-Span |
|
|
PoE Power Output |
Per Port 48V DC, 350 mA, Max. 15.4 watts |
|
|
Web Interface |
||
|
Installation Management |
Web-based configuration |
|
|
Maintenance |
Firmware upgrade through Web Browser or Utility |
|
|
Access from Web Browser |
Camera Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Audio, Picture in Picture, Picture and Picture, Privacy Mask, Text Overlay, Digital PTZ |
|
|
Language |
Arabic / Bulgarian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Hebrew / Hungarian / Indonesian / Italian /Japanese / Lithuanian / Norwegian / Persian / Polish / Portuguese / Romanian / Russian / Serbian / Simplified Chinese / Slovakian / Slovenian / Spanish / Swedish / Thai / Traditional Chinese / Turkish |
|
