GV-ABL8712 8MP H.265 4.3x Zoom Super Low Lux WDR Pro IR Bullet IP Camera
- 1/2" progressive scan super low lux CMOS sensor
- Min. illumination at 0.003 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 20 fps at 3840 x 2160,
- 30 fps at 2944 x 1656 / 2592 x 1944 / 2560 x 1440
- Motorized varifocal lens for remote focus / zoom adjustment
- Intelligent IR
- IR distance up to 50 m (165 ft)
- Day and night function (with removable IR-cut filter)
- Vandal resistance (IK10 for metal casing)
- Ingress protection (IP67)
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I) for local storage
- Two-way audio
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- 3D noise reduction
- Motion detection
- Tampering Alarm
- Text overlay
- Privacy mask
- ONVIF (Profile G, S, T) conformant
Introduction
The Bullet IP Camera GV-ABL8712 is an outdoor network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its motorized varifocal lens, the user can zoom and focus the camera from the Web interface. The GV-ABL8712 adheres to IP67 standard, and can be powered through PoE. The camera is capable of providing a color live view not only in near darkness but also under contrasting light intensities with its super low lux CMOS image sensor and WDR pro.

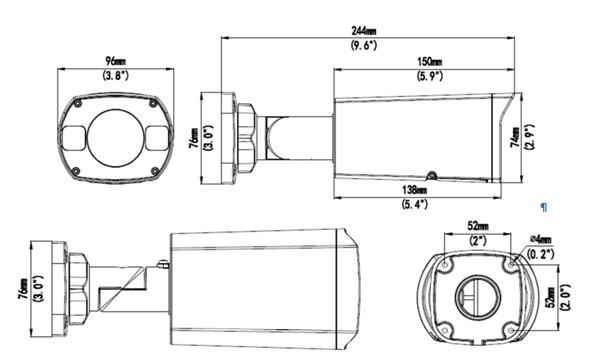

Dimensions
Specifications
|
Camera |
|||||
|
Image Sensor |
1/2" progressive scan super low lux CMOS |
||||
|
Picture Elements |
3840 (H) x 2160 (V) |
||||
|
Minimum Illumination |
Color |
0.003 Lux (F1.5, AGC ON) |
|||
|
IR On |
0 Lux |
||||
|
Shutter Speed |
Auto / Manual (1/6 ~ 1/100000 sec) |
||||
|
White Balance |
Auto / Manual |
||||
|
Gain Control |
Auto / Manual |
||||
|
S/N Ratio |
52 dB |
||||
|
WDR Pro |
Yes |
||||
|
Dynamic Range |
Up to 120 dB |
||||
|
Lens |
|||||
|
Megapixel |
8 MP |
||||
|
Day / Night |
Yes (with removable IR-cut filter) |
||||
|
Lens Type |
Motorized varifocal lens |
||||
|
Focal Length |
2.8 ~ 12 mm |
||||
|
Maximum Aperture |
F/1.5 |
||||
|
Mount |
Ø14 mm |
||||
|
Horizontal FOV |
114.8 ° ~ 47.3° |
||||
|
Operation |
Focus |
Auto / Manual |
|||
|
Zoom |
4.3x Optical Zoom |
||||
|
Iris |
Fixed |
||||
|
IR LED Quantity |
3 IR LEDs |
||||
|
Max. IR Distance |
50 m (165 ft) |
||||
|
Operation |
|||||
|
Video Compression |
H.265, H.264, MJPEG |
||||
|
Video Streaming |
Triple streams |
||||
|
Video Resolution |
Main Stream |
3840 x 2160 (Default), 2944 x 1656, 2592 x 1944, 2560 x 1440, 1920 x 1080 |
|||
|
Sub Stream |
1920 x 1080, 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288 |
||||
|
Third Stream (Closed by Default) |
720 x 576, 704 x 288, 640 x 360, 352 x 288 |
||||
|
Frame Rate |
20 fps at 3840 x 2160, 30 fps at 2944 x 1656 / 2592 x 1440 / 2560 x 1440 (60 / 50 Hz) * The frame rate and performance may vary depending on the number of connections and data bitrates (different scenes). |
||||
|
Video Analytics |
Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion, Object Moving, Object Left, Defocus, Scene Change, Face Detection, People Counting *Tampering alarm, audio detection, cross line, intrusion, object moving, object left, defocus, scene change, face detection and people counting are only accessible through the camera’s Web interface, which can be used to trigger alerts such as e-mail and FTP |
||||
|
Image Setting |
Brightness, Contrast, Saturation, Sharpness, Flicker-less, Image Orientation |
||||
|
Audio Compression |
G.711, AAC (optional) |
||||
|
Audio Support |
Two‐way Audio (external microphone and speaker required) |
||||
|
Digital I/O |
Input |
1 Input, dry contact, NO / NC |
|||
|
Output |
1 Relay Output (1A 30V DC / 0.3A 125V AC) |
||||
|
Network |
|||||
|
Interface |
10/100 Ethernet |
||||
|
Protocol |
802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
||||
|
Mechanical |
|||||
|
Camera Angle Adjustment |
Pan |
0°~360° |
|||
|
Tilt |
0°~120° |
||||
|
Rotate |
0°~360° |
||||
|
Connectors
|
Power |
DC Jack (DC 12V, 1.25A), PoE |
|||
|
Ethernet |
RJ-45 |
||||
|
Audio |
1 in (Audio In Wire); 1 out (Audio Out Wire) *The Audio In port only supports microphones with power supply. |
||||
|
Digital I/O |
4-pin terminal block pitch 3.5 mm (0.14”) |
||||
|
Local Storage |
Micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) * UHS-II card type is not supported. |
||||
|
TV Out |
BNC Connector |
||||
|
General |
|||||
|
Operating Temperature |
-35°C ~ 60°C (-22°F ~ 140°F) |
||||
|
Humidity |
0% ~ 95% (no condensation) |
||||
|
Power Source |
12 V DC / PoE (IEEE802.3af) |
||||
|
Max. Power Consumption |
10 W |
||||
|
Dimensions |
253.4 × 86 ×71.1 mm (9.98” × 3.4” × 2.8”) |
||||
|
Weight |
0.58 kg (1.28 lb) |
||||
|
Ingress Protection |
IP67 |
||||
|
Vandal Resistance |
IK10 for metal casing |
||||
|
Regulatory |
FCC, UL, CE, RoHS compliant |
||||
|
Web Interface |
|||||
|
Installation Management |
Web-based configuration |
||||
|
Maintenance |
Firmware upgrade through Web Browser or Utility |
||||
|
Access from Web Browser |
Live View, Video Recording, Change Video Quality, Bandwidth Control, |
||||
|
Language |
Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
||||
|
Applications |
|||||
|
Software Supported |
GV‐DVR / NVR (V8.7.4.0), GV‐VMS (V17.1), GV‐Control Center (V3.5.0.0), GV-Edge Recording Manager (V1.3.0.0), GV‐Recording Server / Video Gateway (V1.4.0.0), GV‐Redundant / Failover Server (V1.1.0.0) |
||||
|
Smart Device Access |
GV-Eye for iOS and Android |
||||
|
Live Viewing |
Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App |
||||
